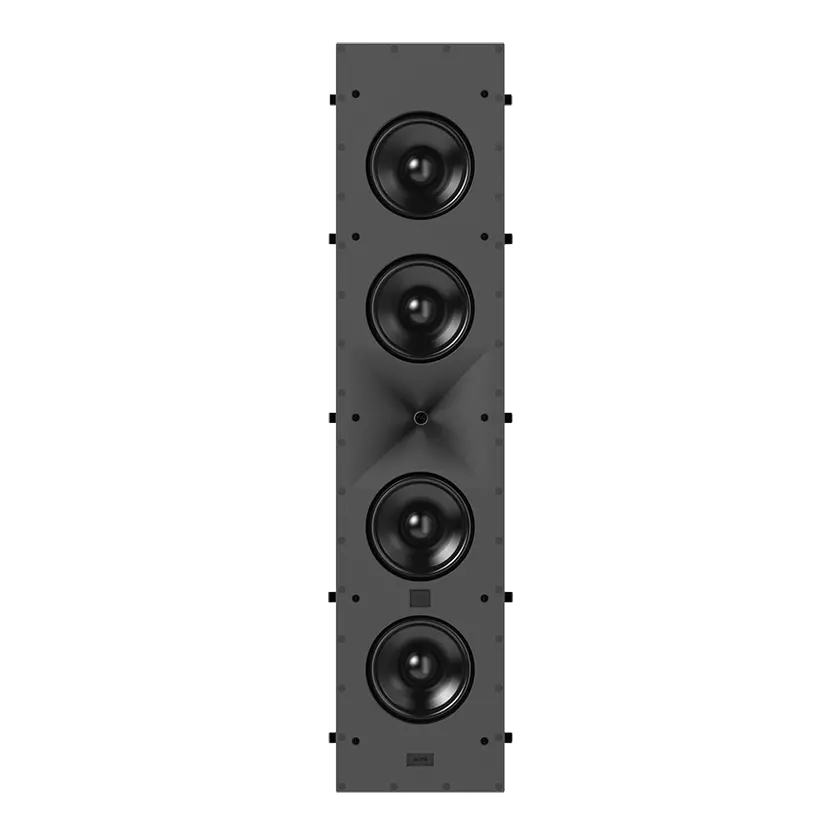

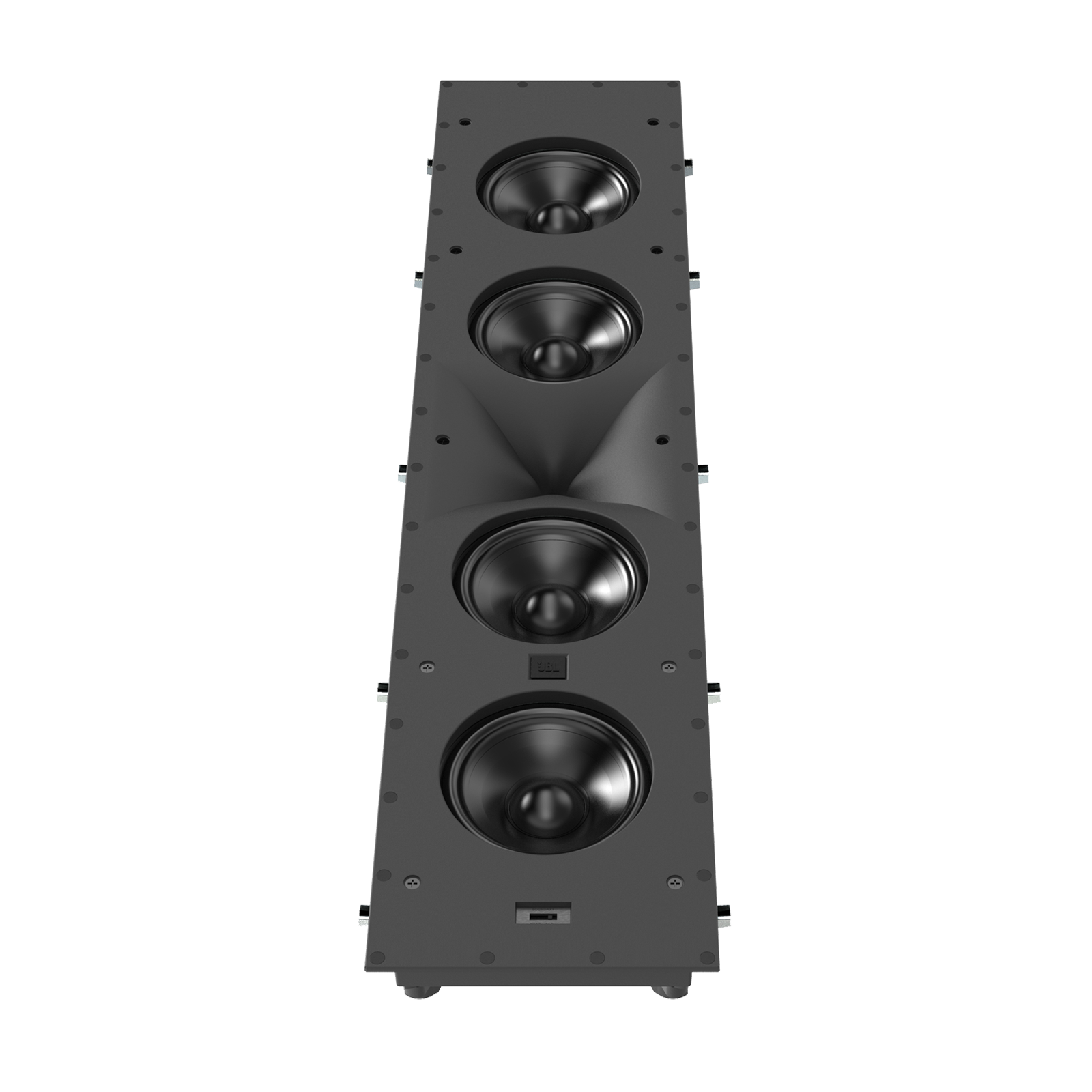

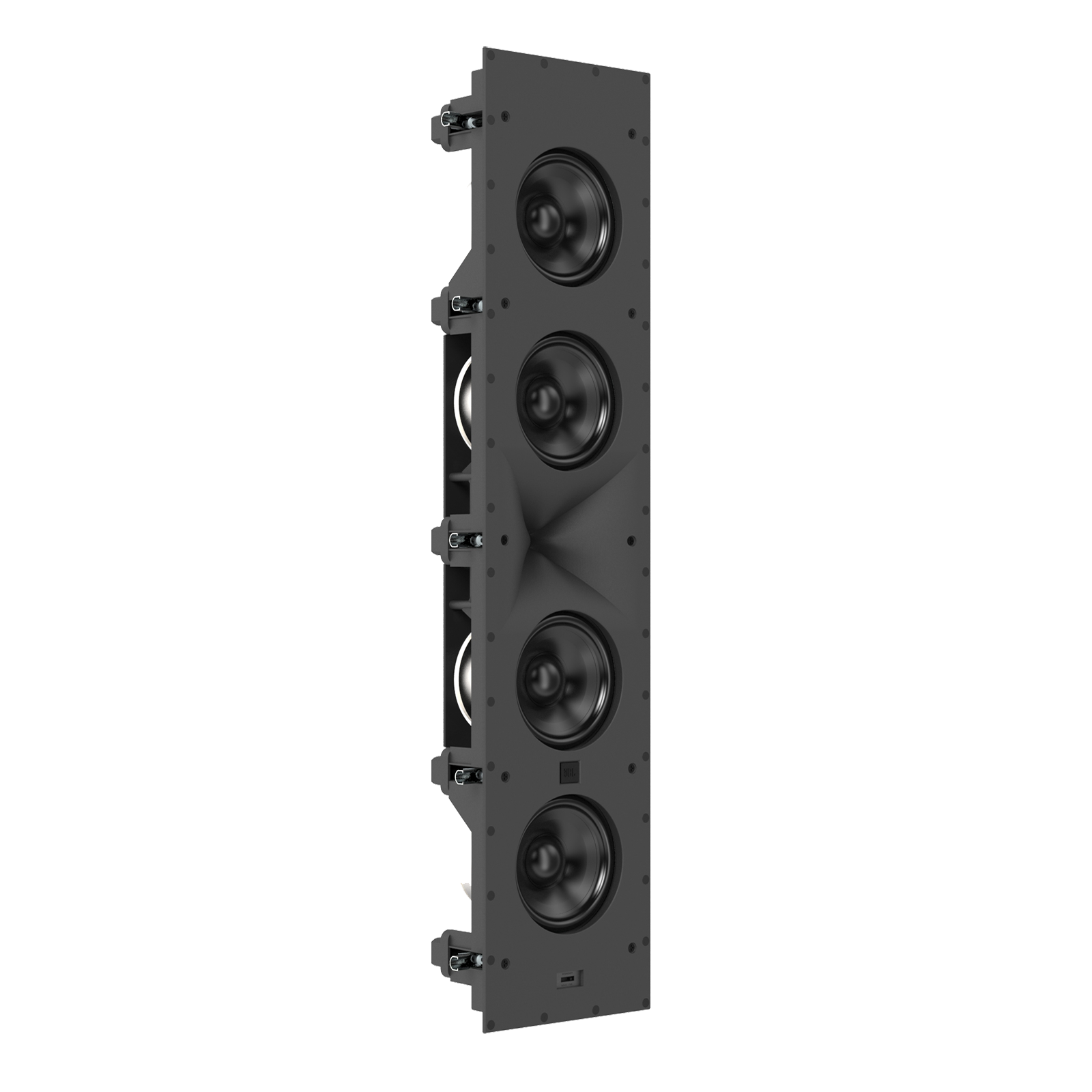

SCL-6
2.5-Way Quadruple 5.25-inch (130mm) In-Wall Loudspeaker
The SCL-6 is the largest traditional in-wall model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as an LCR or surround channel in a variety of applications. The SCL-6 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to a High Definition Imaging (HDI™) horn. This patented horn design is integrated with four 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision molded baffle assembly. The configuration yields incredibly smooth and consistent performance for in-wall LCR or surround applications. The SCL-6 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small, medium, or large rooms.

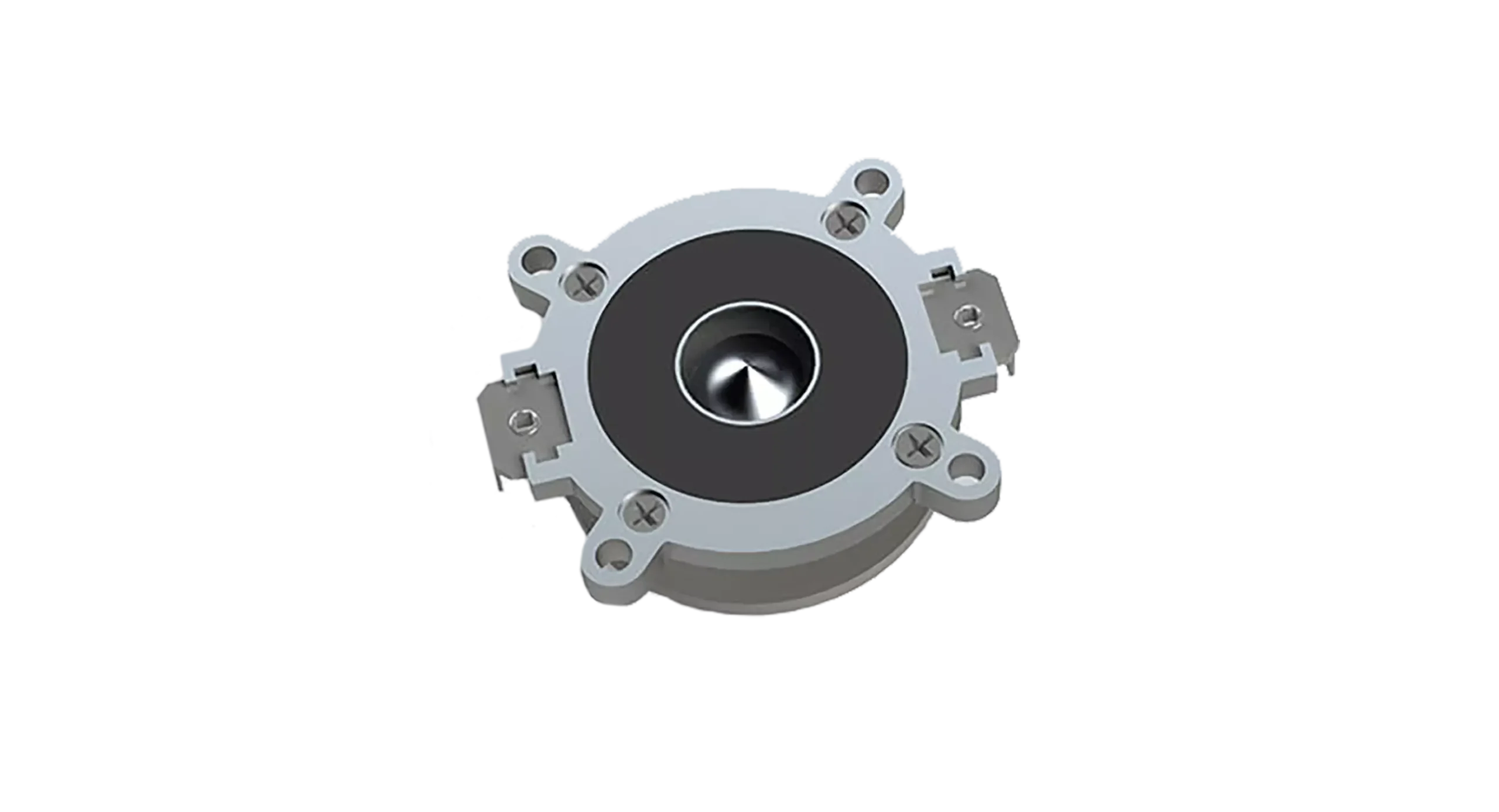

PATENTED 2410H-2 1-INCH (25MM) COMPRESSION DRIVER

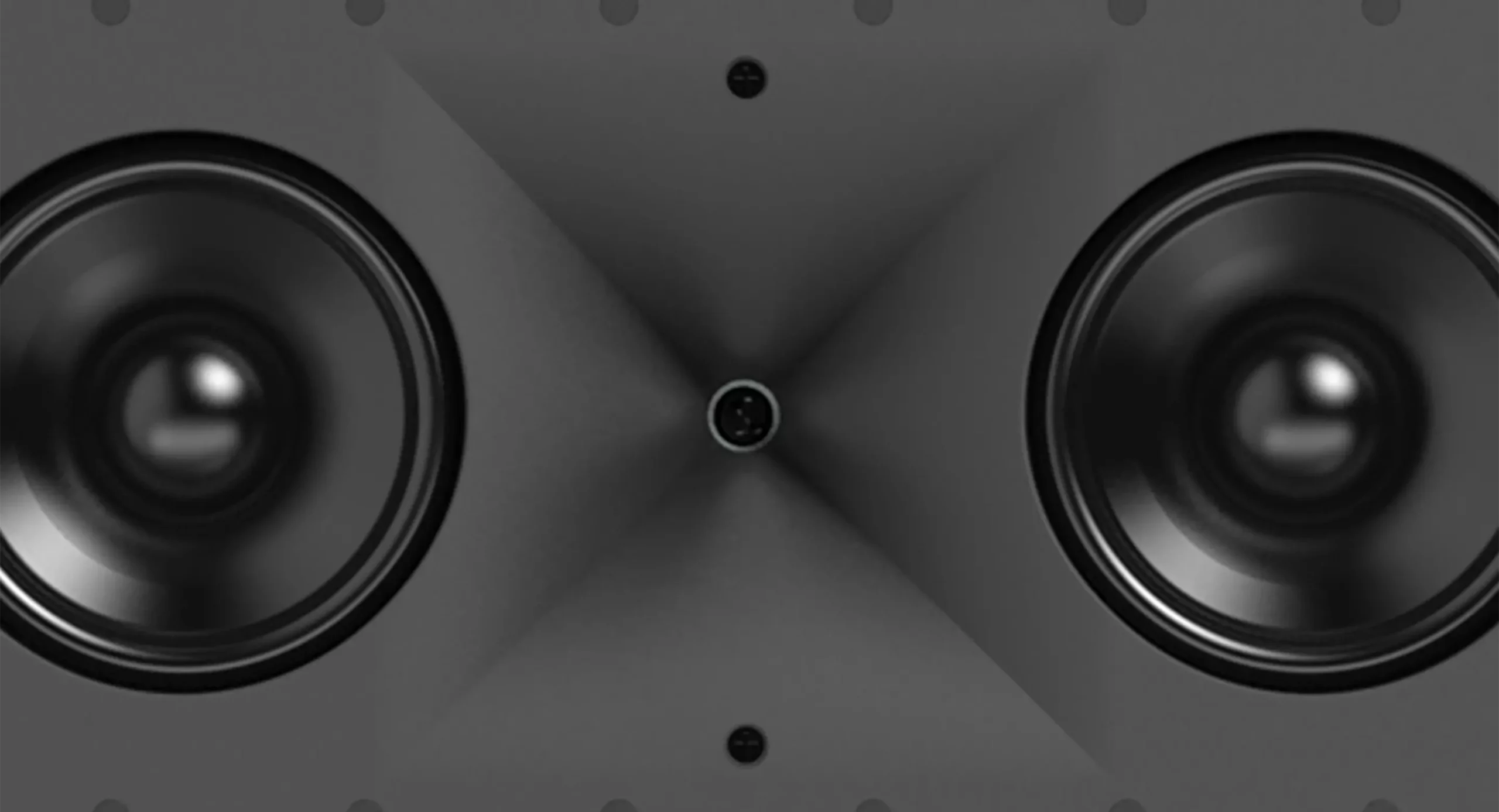

PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY

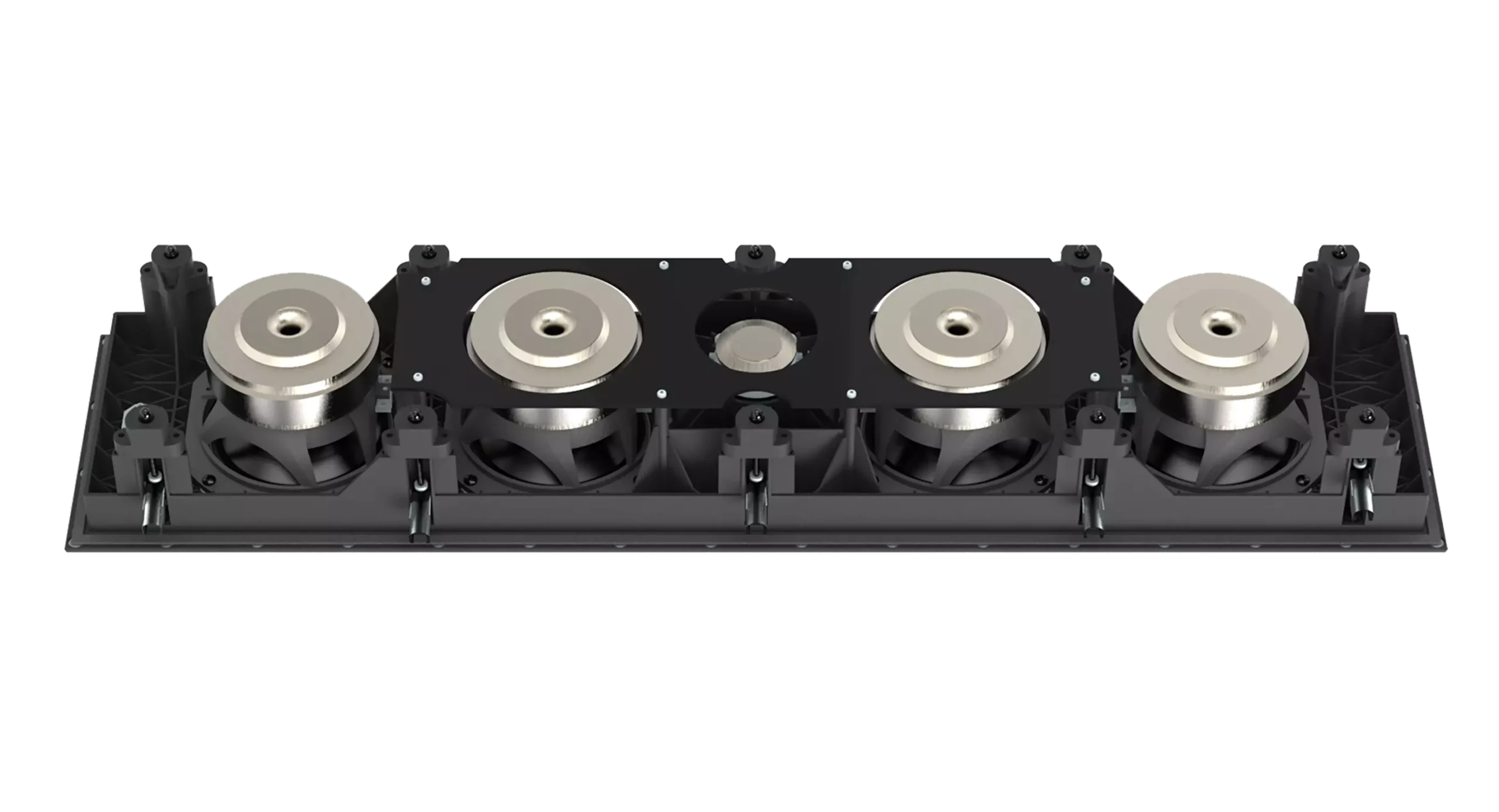

QUADRUPLE 5.25-INCH (130MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFERS
Molded Baffle with Patented Cat Claw Installation Mechanism
Advanced Crossover Network
Gold-plated Spring-loaded Binding Post Input Terminals

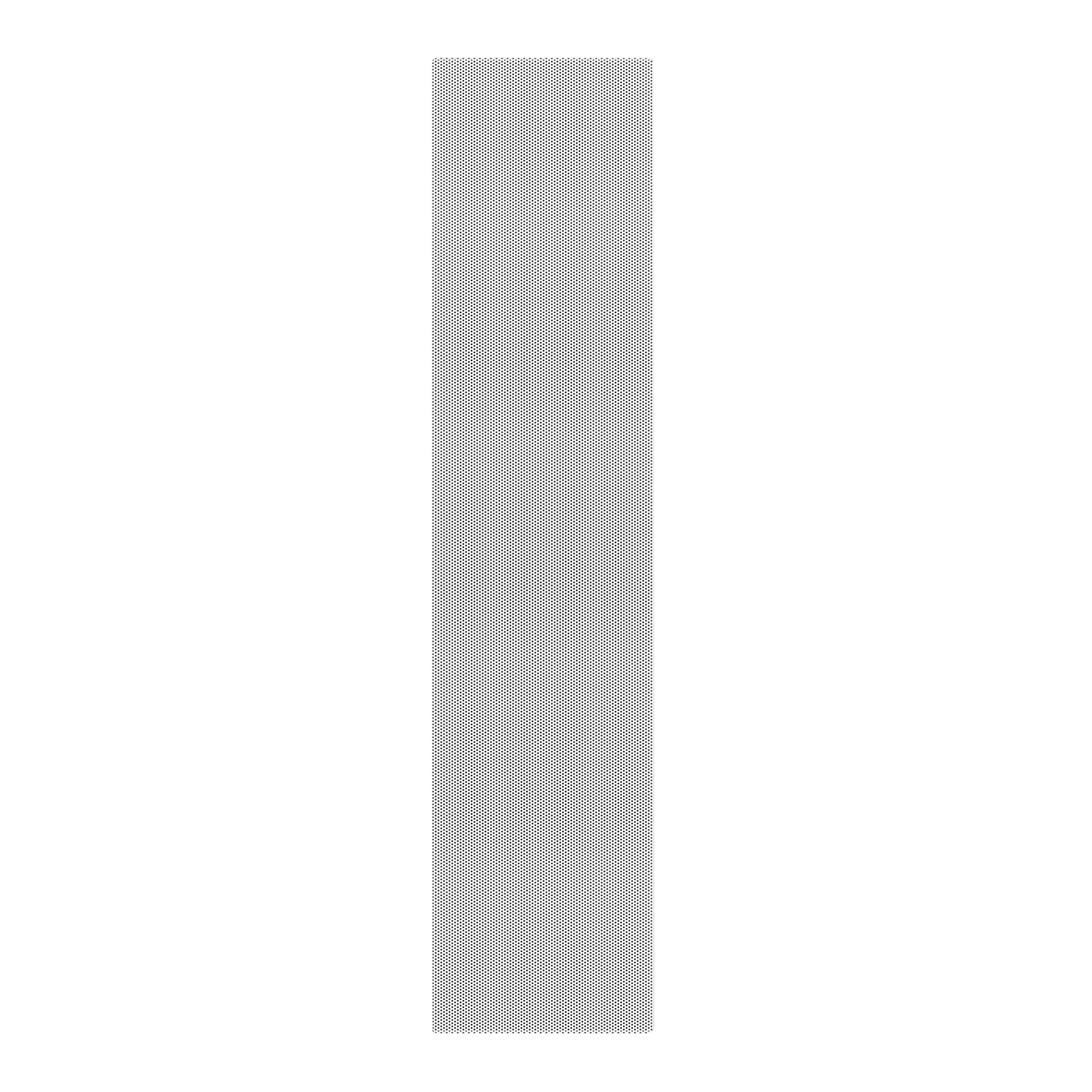

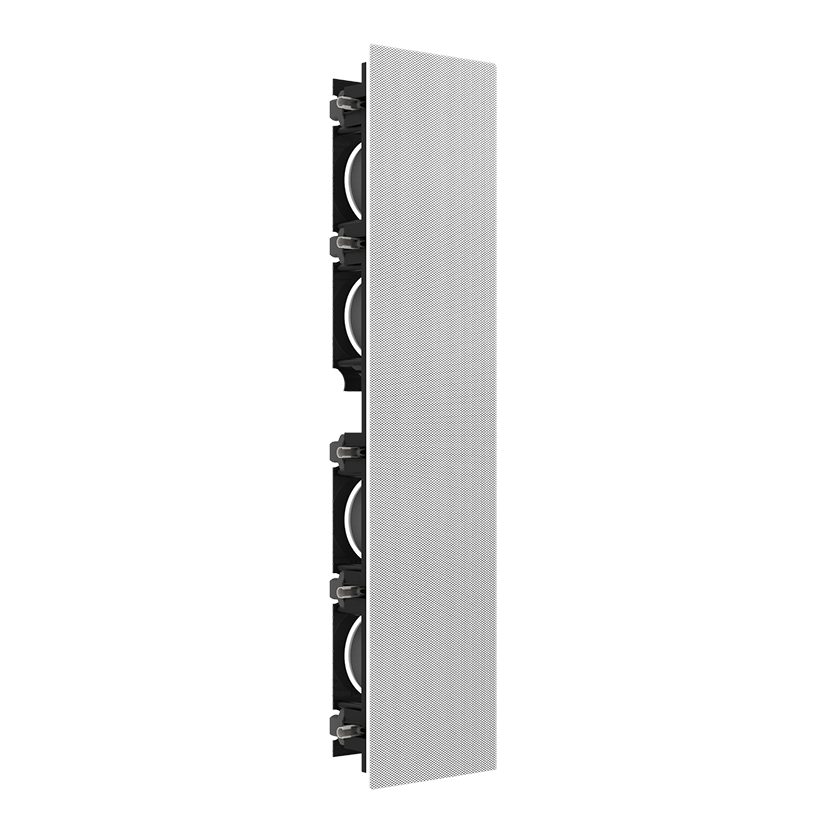

Zero-bezel, Magnetically-attached Paintable Grille
SPECIFICATIONS
Type
2.5-Way In-wall loudspeaker
High Frequency Driver
1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Impedance
4 Ohm
Frequency Response
50Hz - 30kHz (-6 dB on-axis), 2pi anechoic
High Frequency Coverage Angle (-6 dB)
80° Vertical / 80° Horizontal, from 2 kHz to 17 kHz.
Controls
Boundary Proximity Control
Product Dimensions (with grille)
7.29” (185 mm) x 31.32” (796 mm) x 3.82” (97.1 mm)
Rough-in Bracket
WB54
Input Type
Gold-plated spring-loaded binding posts
Shipping Weight
25.6 lbs (11.61 kg)
Warranty
5 Years
Low Frequency Driver
Four 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4)
Recommended Amplifier Power
25 – 200W RMS
Loudspeaker Sensitivity
91 dB/2.83V/1m (2pi anechoic)
Crossover Frequency
1.8 kHz
Enclosure Type
Open back
Grille Dimensions
7.29” (185 mm) x 31.32” (796 mm)
Cut-out Dimensions
6.18” (157 mm) x 30.18” (766 mm)
Mounting Depth
Mounting Depth
Product Weight
22.2 lbs (10.07 kg)
Shipping Units of Measure
Each
